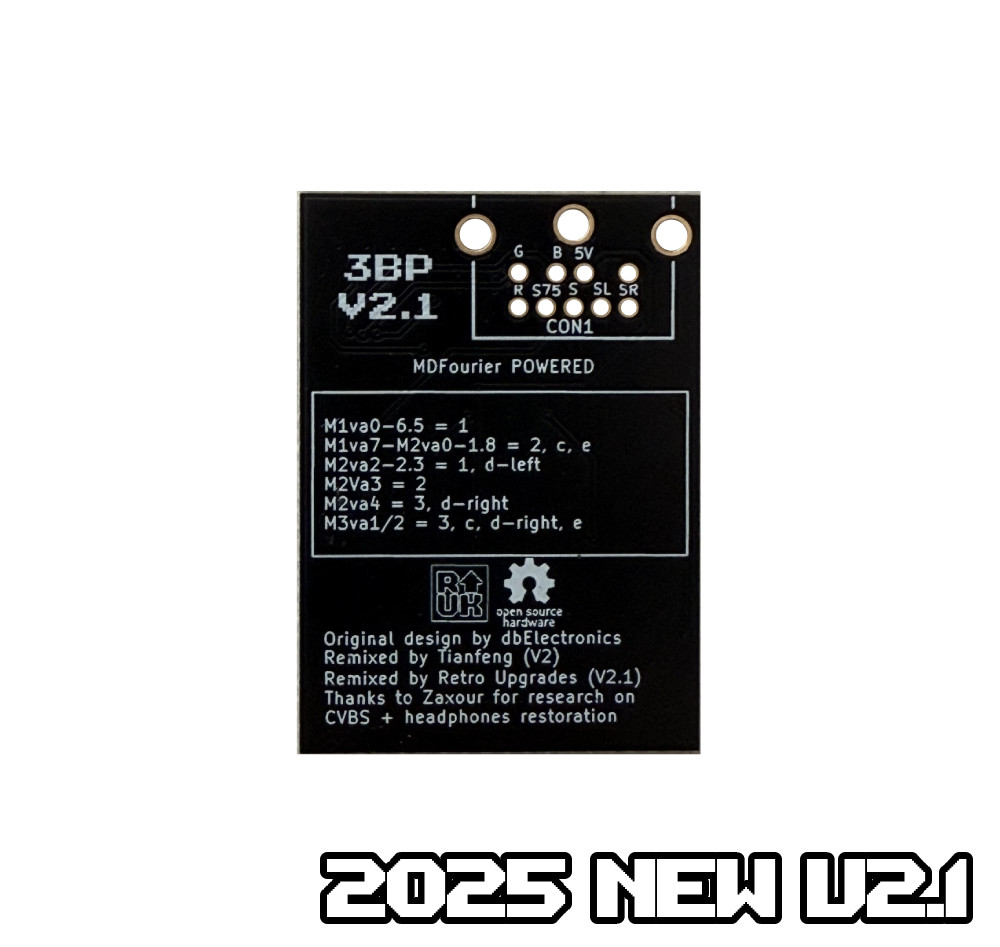

Sega Mega Drive/Genesis Model 1 + 2 Triple Bypass V2 Amp DIY Mod Kit MD1 MD2
Specifications
| Return Postage Will Be Paid By | Buyer |
| Returns Accepted | Returns Accepted |
| After Receiving The Item, Your Buyer Should Cancel The Purchase Within | 14 days |
| Brand | dBelectronics/Tianfeng |
| Type | Home Console |
Get the best audio & video quality out of your old consoles with the latest V2 revision of the Sega MD/Genesis Triple Bypass!This listing is for the Mega Drive/Genesis Model 1 + Mega Drive/Genesis 2 Triple Bypass V2 kit. Please select the appropriate kit for your console type from the drop-down menu above.Features:Both video and audio optimisation for Mega Drive & Genesis consolesUses the latest THS7374 amp and uses bypass circuitry to improve RGB signal clarity.Utilises the Mega Amp 2.0 audio amp which vastly improves the audio compared to stock.Low-pass filter toggle.Professionally assembled using high-quality components from JP & USA. Brands such as Nichicon, Vishay, Panasonic.All 3BP kits now come with the three 5.6k pull-up resistors as documented here: https://www.retrorgb.com/fix-for-all-rgb-bypassed-sega-genesis.html (only necessary for MD2 VA3 & VA4, MD1 consoles).3BP boards are now thinner which makes bottom mounted MD2 and Genesis 2/3 installs slightly easier & cleaner.V2 Features:Jumpers which allow you to choose between many audio configurations.Audio optimised with the MDFourier project to match the best audio quality that comes from a new Model 1.Sega Mega Drive Model 1 3BP Kit includes multiple additional parts over the Model 2 3BP kit. These parts are required to install the 3BP in a Sega Mega Drive Model 1/Genesis Model 1. 14/03/24 - NEW VDP to 3BP board is included in each Model 1 kit. Installation guides: for now we'd recommend following these two videos by Dubesinhower below. Our written 3BP guide is in the works. Sega Mega Drive 1 / Genesis 1 Sega Mega Drive 1 / Genesis 2 VDP to 3BP board quick guide: After lifting the VDP RGB pins, align the VDP23BP board beneath them and remove the double-sided tape on the bottom side of the VDP board too keep the board in place. Anchor the board down further by connecting the +5V and GND pads the nearby capacitor so that the board is secure. Lastly solder the VDP RGB pins to the board and place some Kapton tape over the top to ensure the board will not move freely. Sync pads are optional. Proceed with Triple Bypass V2 install as per usual. What are the three included resistors for? Essentially they are only for installations that require the lifting of VDP pins (MD1 + MD2 VA3/VA4). See here: https://www.retrorgb.com/fix-for-all-rgb-bypassed-sega-genesis.html For information regarding the install, please visit: http://retrorgb.com/genesistriplebypass.htmlThe kit is sold as DIY and requires soldering skills, please make sure you are confident in installing before purchasing.The reverse side of the board displays the various configurations that you can set via the jumpers.Components for all configurations are assembled on the board.Huge thanks to db electronics, RetroRGB, Cruzlink2, Artemio, Ace, Mobiusstriptech, Firebrand X, Tian Feng and Bfbiii for working on this awesome project.Combining shipping for international orders:We will always combine shipping costs on all orders. If you are purchasing multiple items from our store and the eBay website does not allow you to request to combine shipping when the items are in your cart, we will manually combine the costs after purchase and refund you the difference. Please message if you require a combined shipping quote beforehand.EU shipping notice (no import tax upon delivery):All orders with a total value of under 150 euros that are shipped to countries where the destination country is within the European Union include import tax in both the product and shipping price. The price seen upon checkout is final, and you will not be subjected to any import tax or handling fees upon delivery unless the total order value is above 150 euros. Please feel free to message us if you have any questions.
